Product Details
＋
Product Details
| Brand | EVIL ENERGY |
| Material | Hose: Nylon, Synthetic Rubber Fitting: Aluminum Alloy |

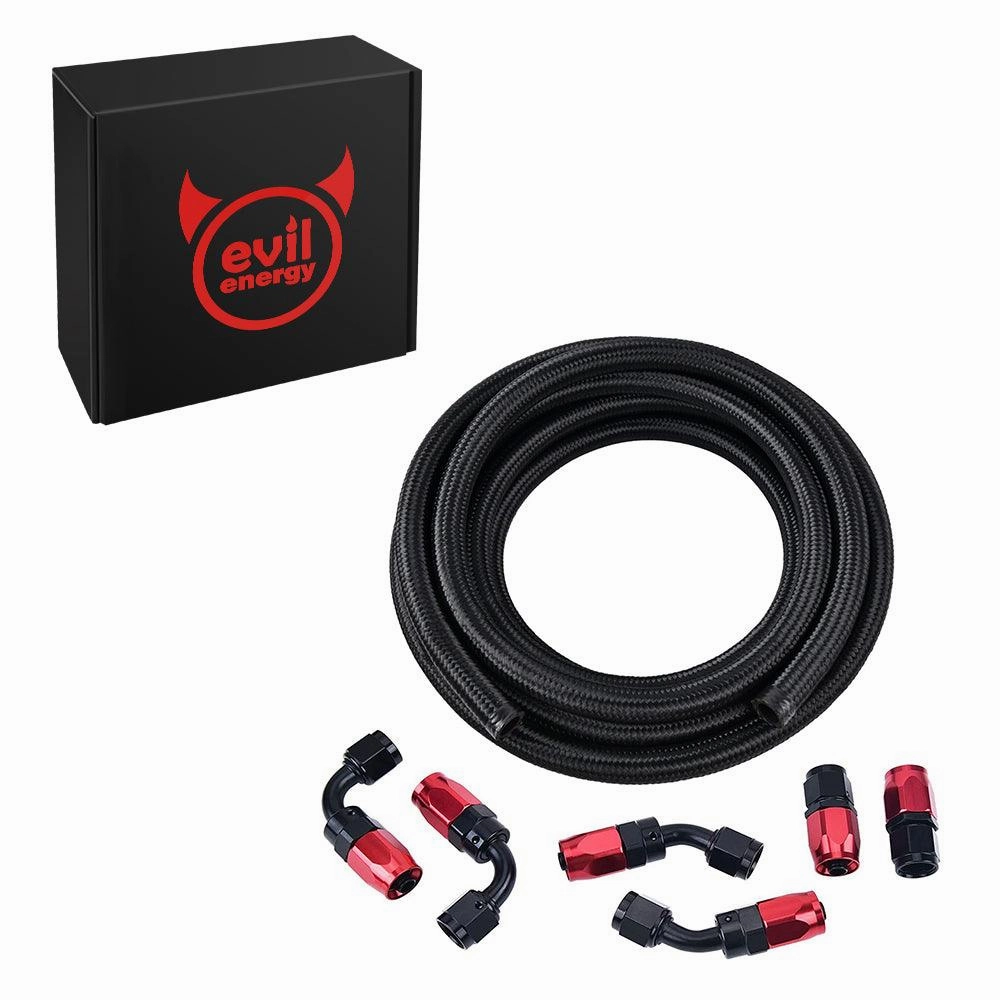

| Color | Black，Black&Red |
| Size | 4AN/6AN/8AN/10AN |
| Length | 10FT/12FT/16FT/20FT |
| Hose ID | 4AN ID: 7/32" (0.22inch). 6AN ID: 0.34". 8AN ID: 0.43". 10AN ID: 0.55". 12AN ID: 0.69 inch |
| Hose OD | 4AN OD: 0.43inch. 6AN OD: 0.54inch. 8AN OD: 0.64inch. 10AN OD: 0.78inch. 12AN OD: 0.96 inch |

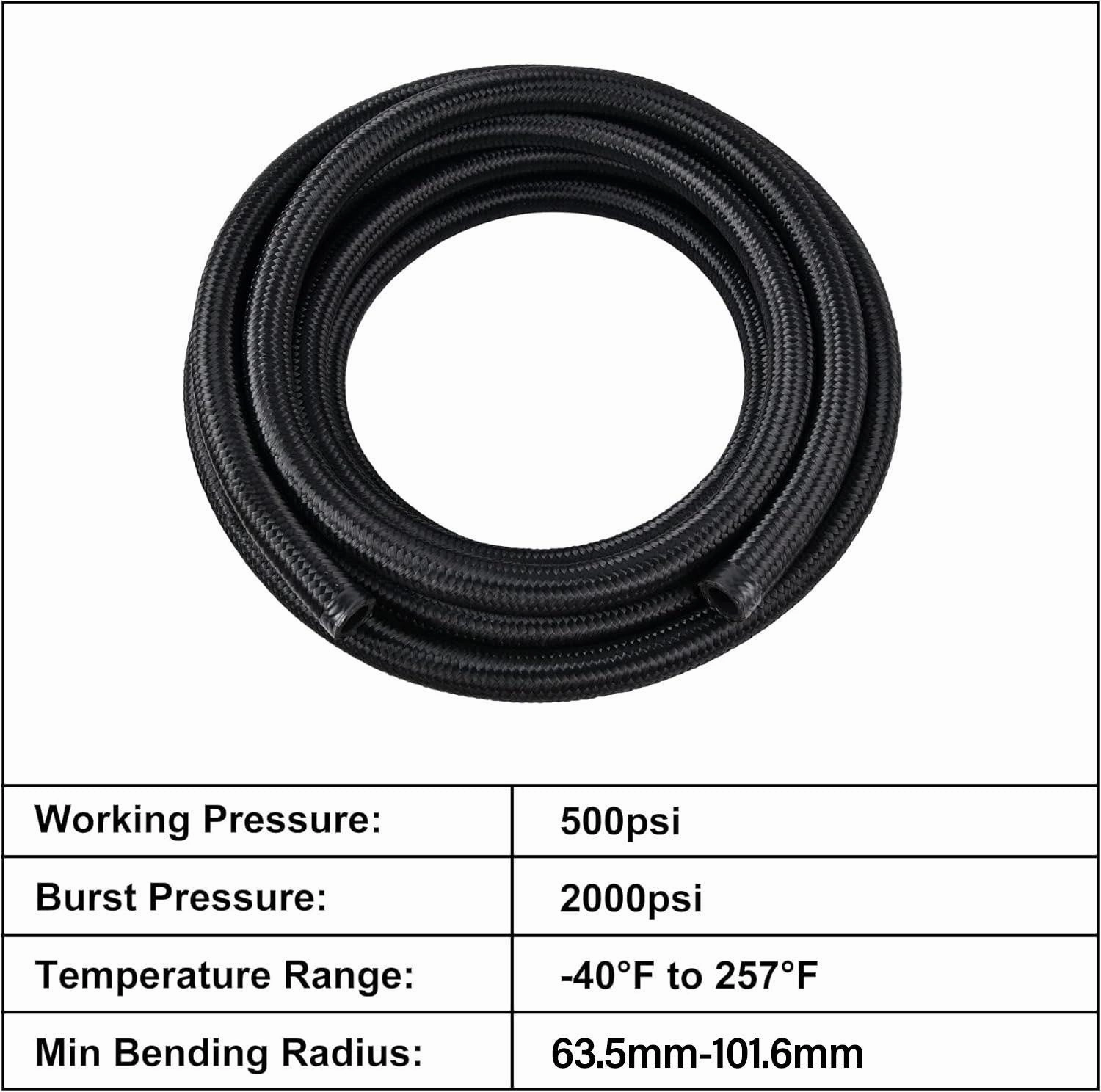

| Maximum working pressure | 4/6/8/10AN: 500psi 12AN: 350psi |
| Bursting pressure | 4/6/8/10AN: 2000psi 12AN: 1400psi |
| Temperature Range | -40℉ to 257℉ |
| Min Bending Radius | 4AN: 50.8mm 6AN: 63.5mm 8AN: 88.9mm 10AN: 101.6mm 12AN: 114.3mm |

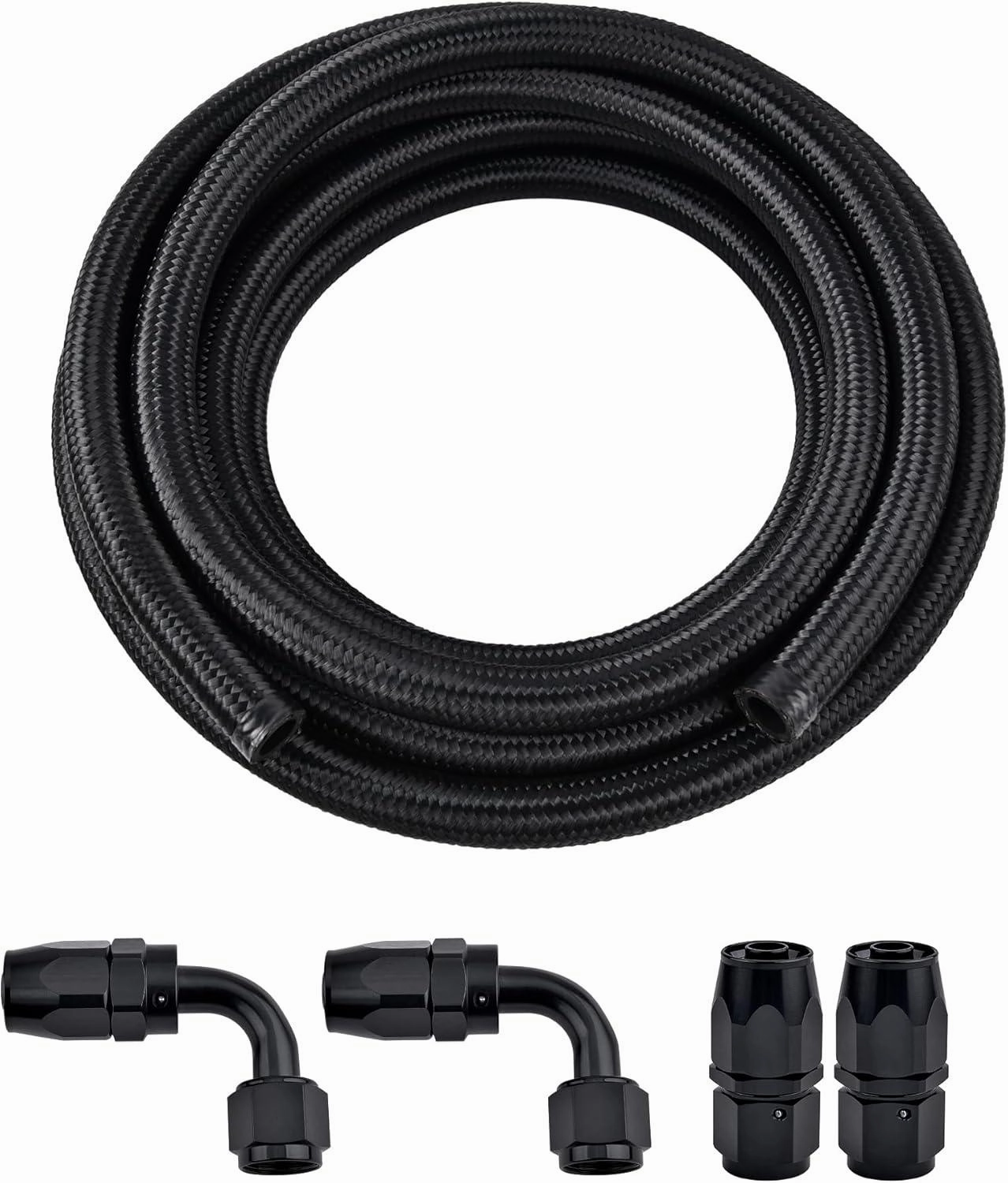

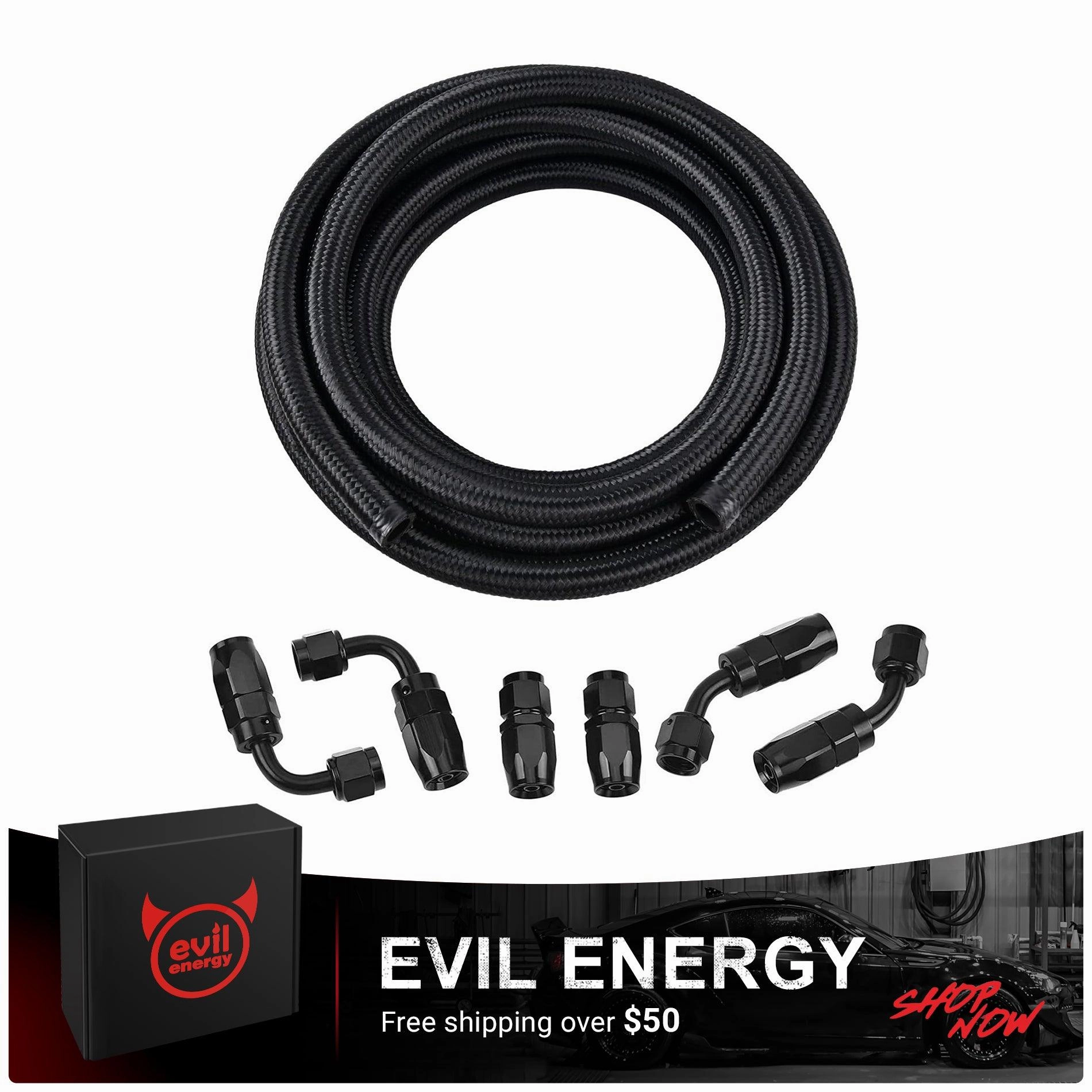

| 6PCS Fitting Include | Straight Swivel hose end*2 45° Swivel hose end*2 90° Swivel hose end*2 |

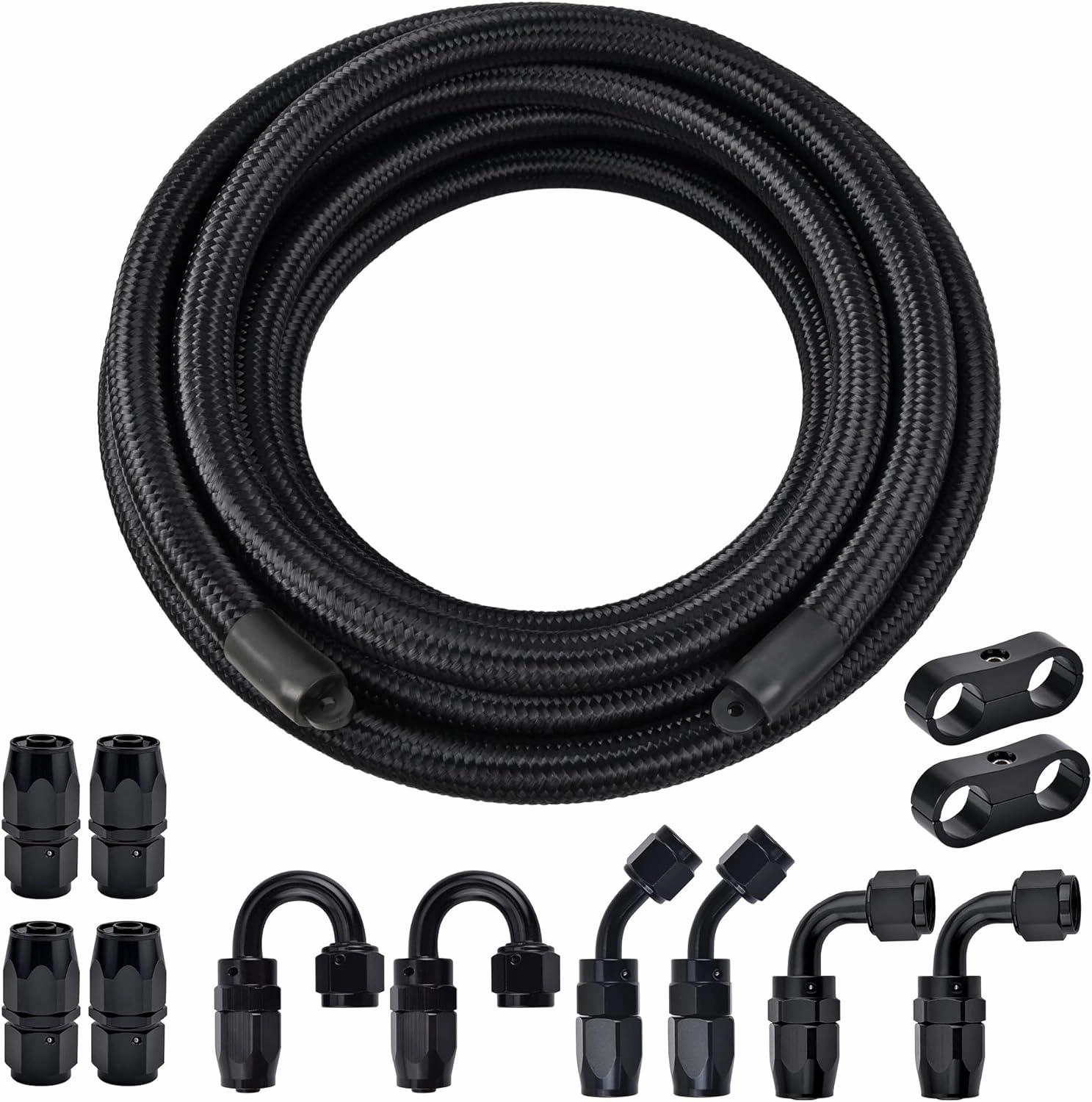

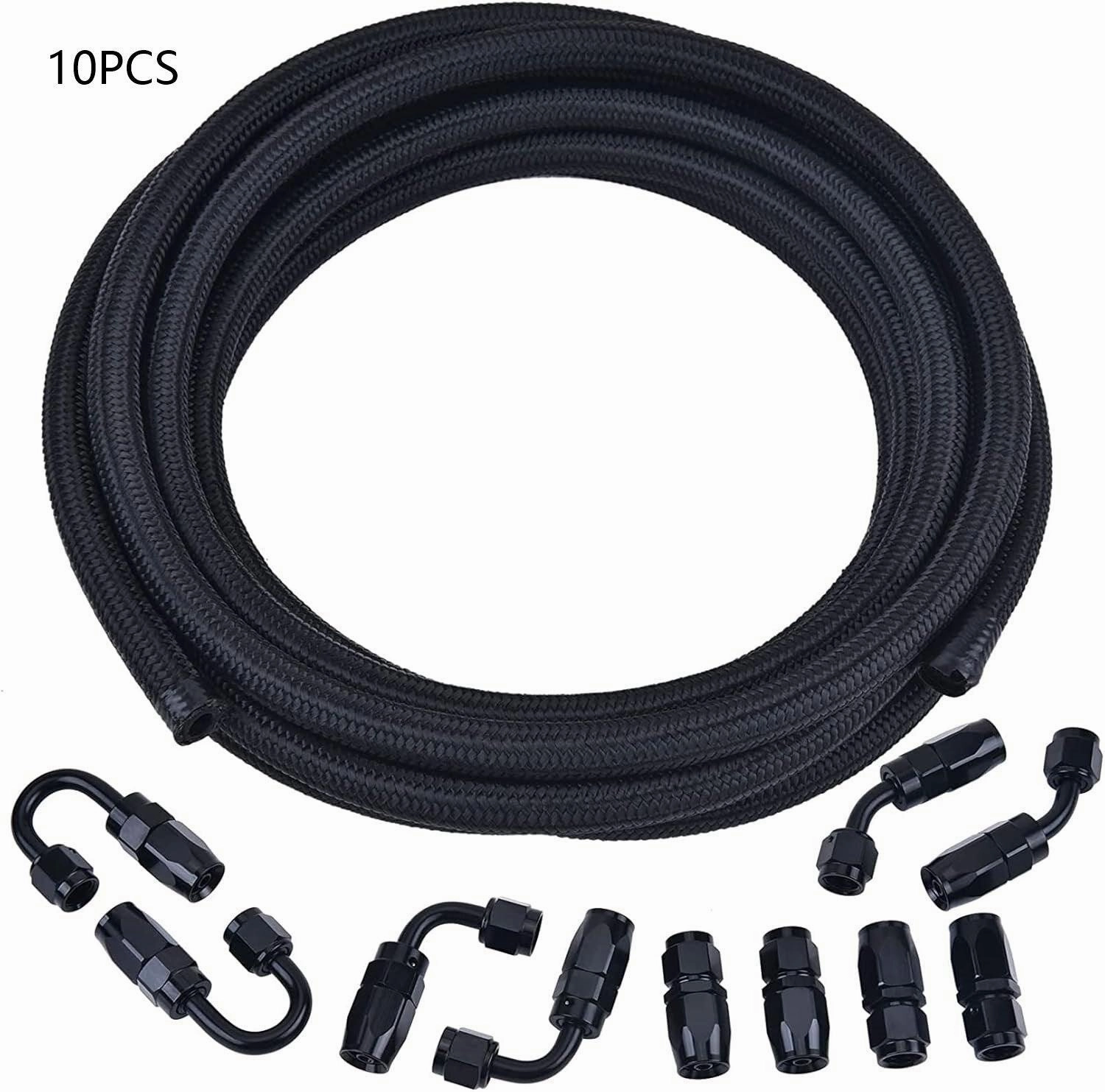

| 10PCS Fitting Include | Straight Swivel hose end*4 45° Swivel hose end*2 90° Swivel hose end*2 180°Swivel hose end*2 |

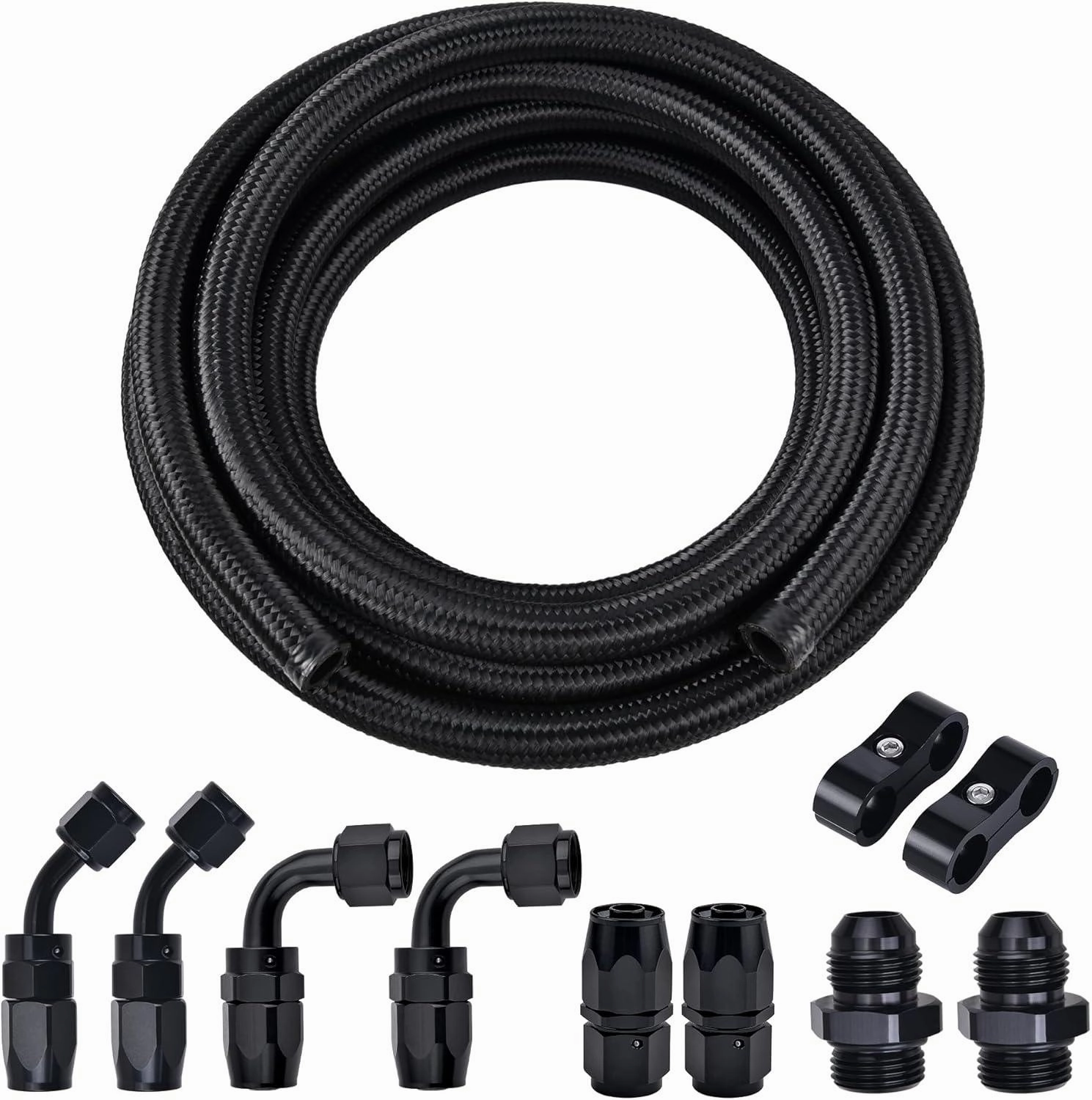

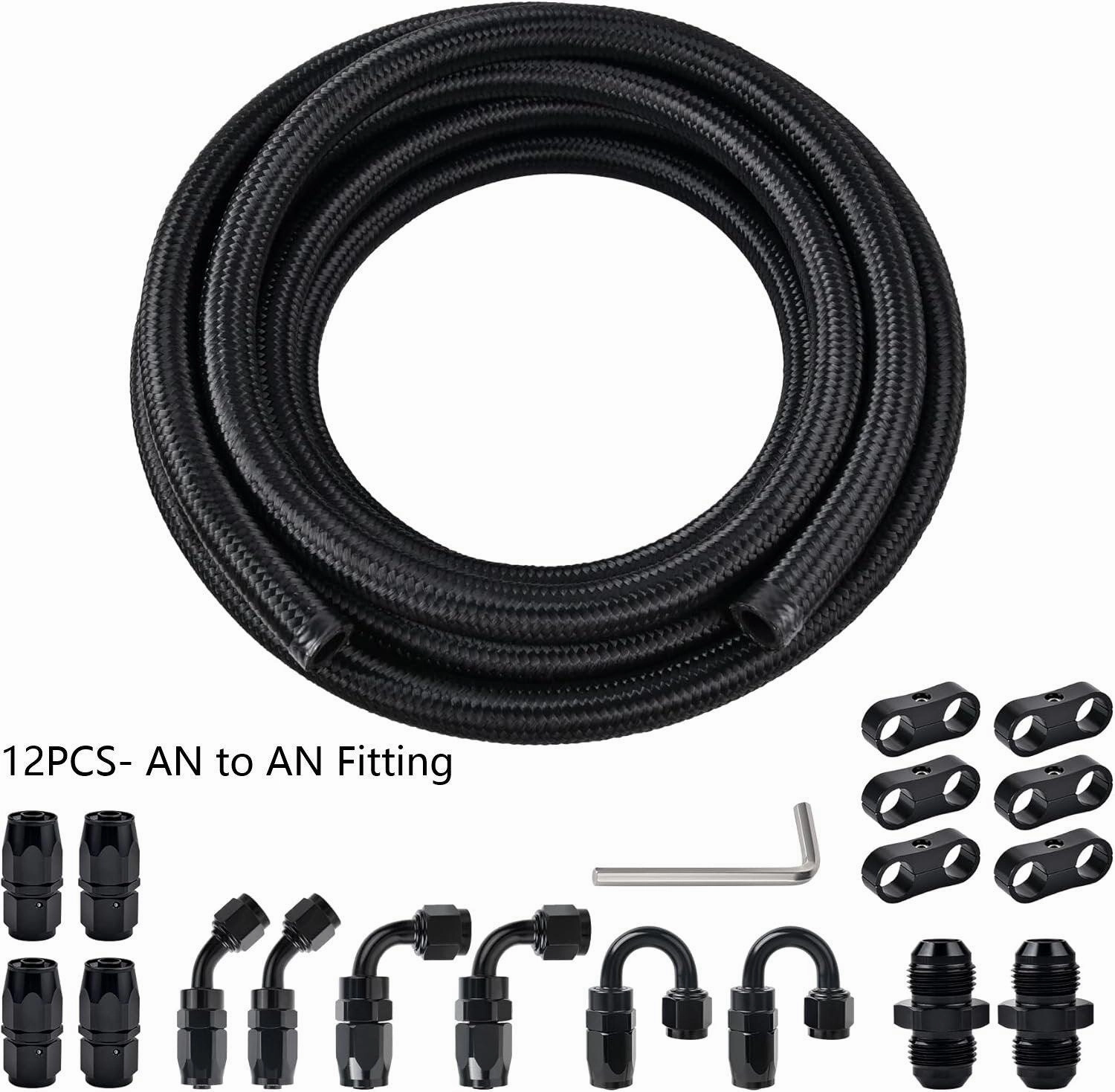

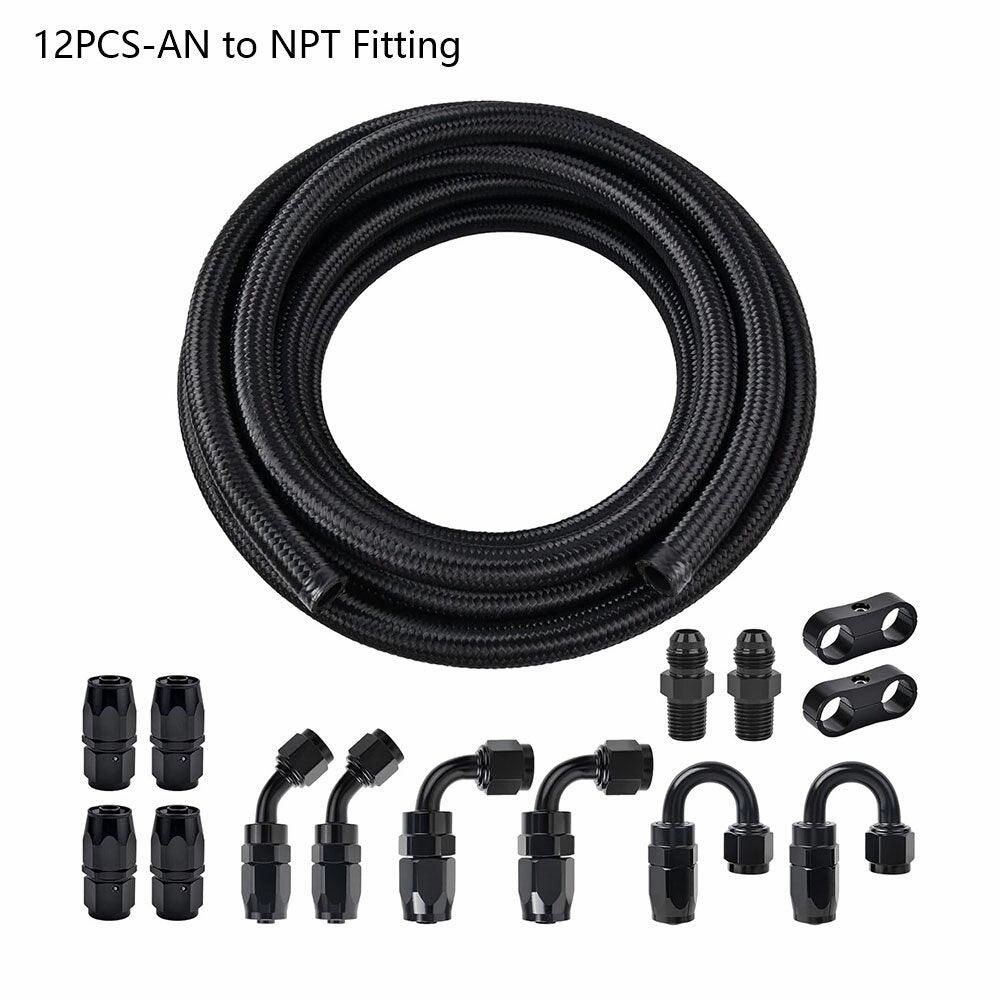

| 12PCS Fitting Include | Straight Swivel hose end*4 45° Swivel hose end*2 90° Swivel hose end*2 180°Swivel hose end*2 AN to AN Fitting *2 or AN to NPT Fitting *2 |
About this item
- [Applications]: This AN hose kit is suitable for use with transmission fluid, oil, race gas, fuel, and more.

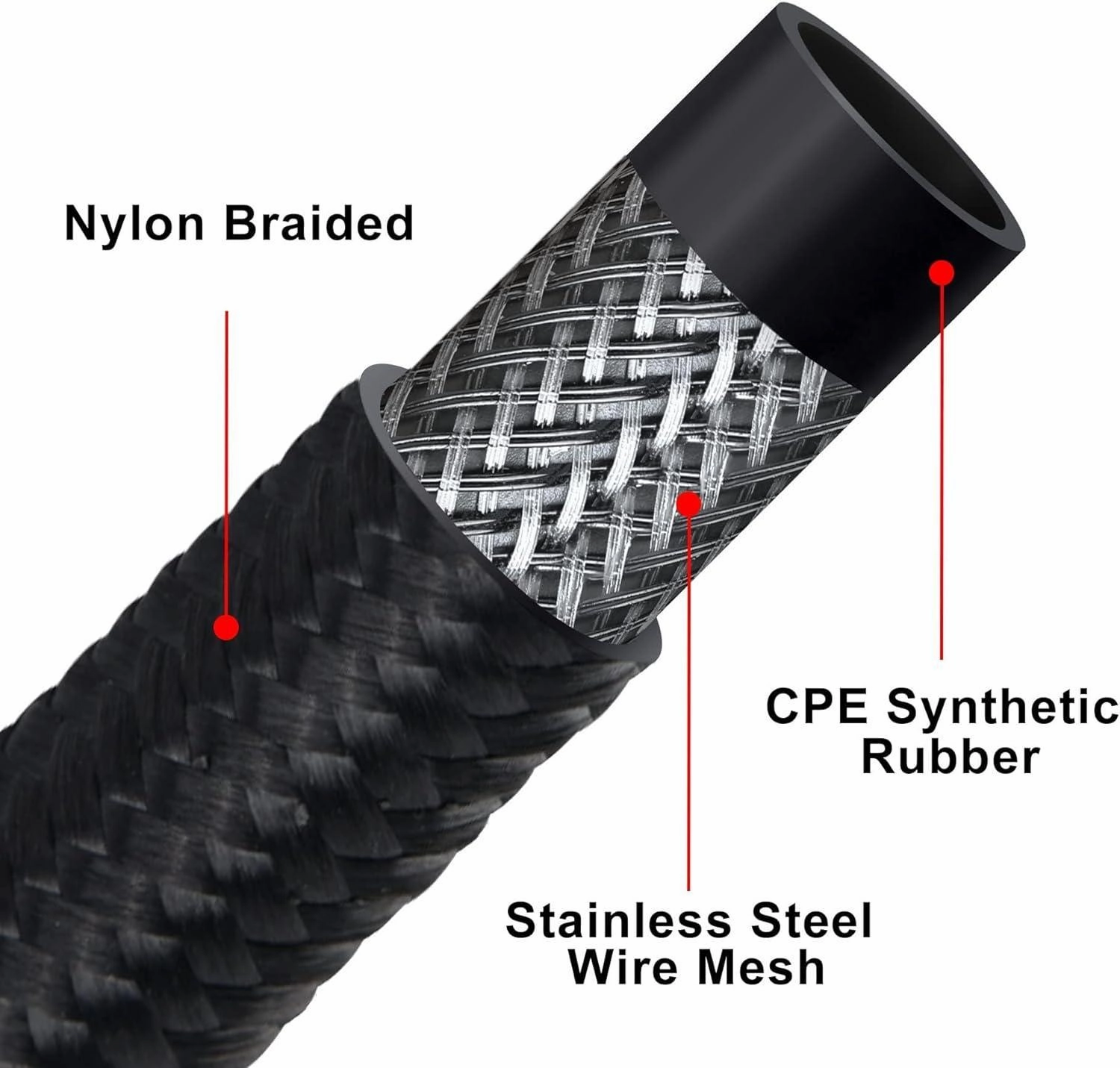

- [Construction]: The hose features a CPE rubber inner layer, reinforced with a 304 stainless steel wire mesh, and finished with a nylon outer braid.
- [Compatibility]: The braided fuel hose is designed to handle a variety of fluids including transmission fluid, oil, race gas, vacuum, hydraulic fluid, diesel, and fuel.
- [Warranty]: EVIL ENERGY provides 6 months warranty for this. For any questions or additional information, feel free to contact us at .
