Fitment Information

• BMW 525i Base 2.5L L6 (1991, 1992, 1993, 1994, 1995, 2001, 2002, 2003)

• BMW 528i Base 2.8L L6 (1997, 1998, 1999, 2000)

• BMW 530i Base 3.0L L6 (2001, 2002, 2003)


Specs & Features

• Torque Capacity (ft/lbs.): 702 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 129%

• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1.125

• Pressure Plate Type: Xtreme
• 12 Month Warranty

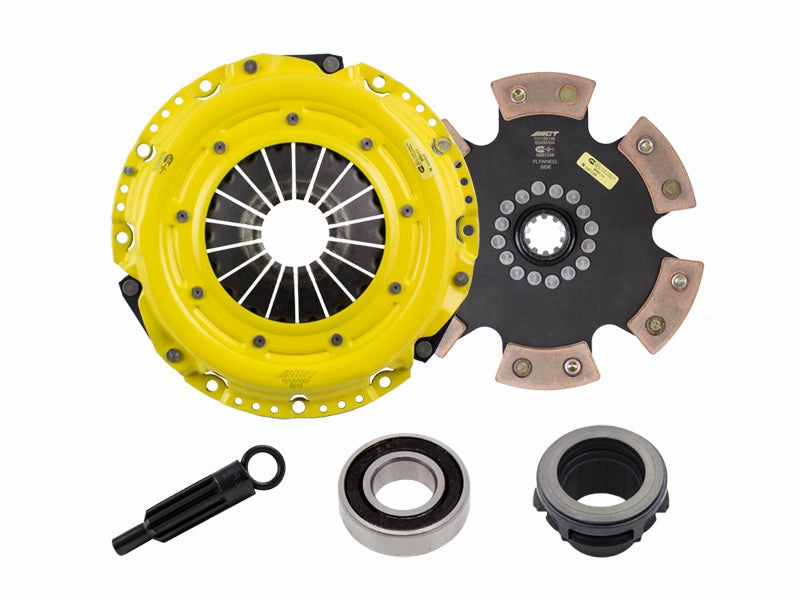

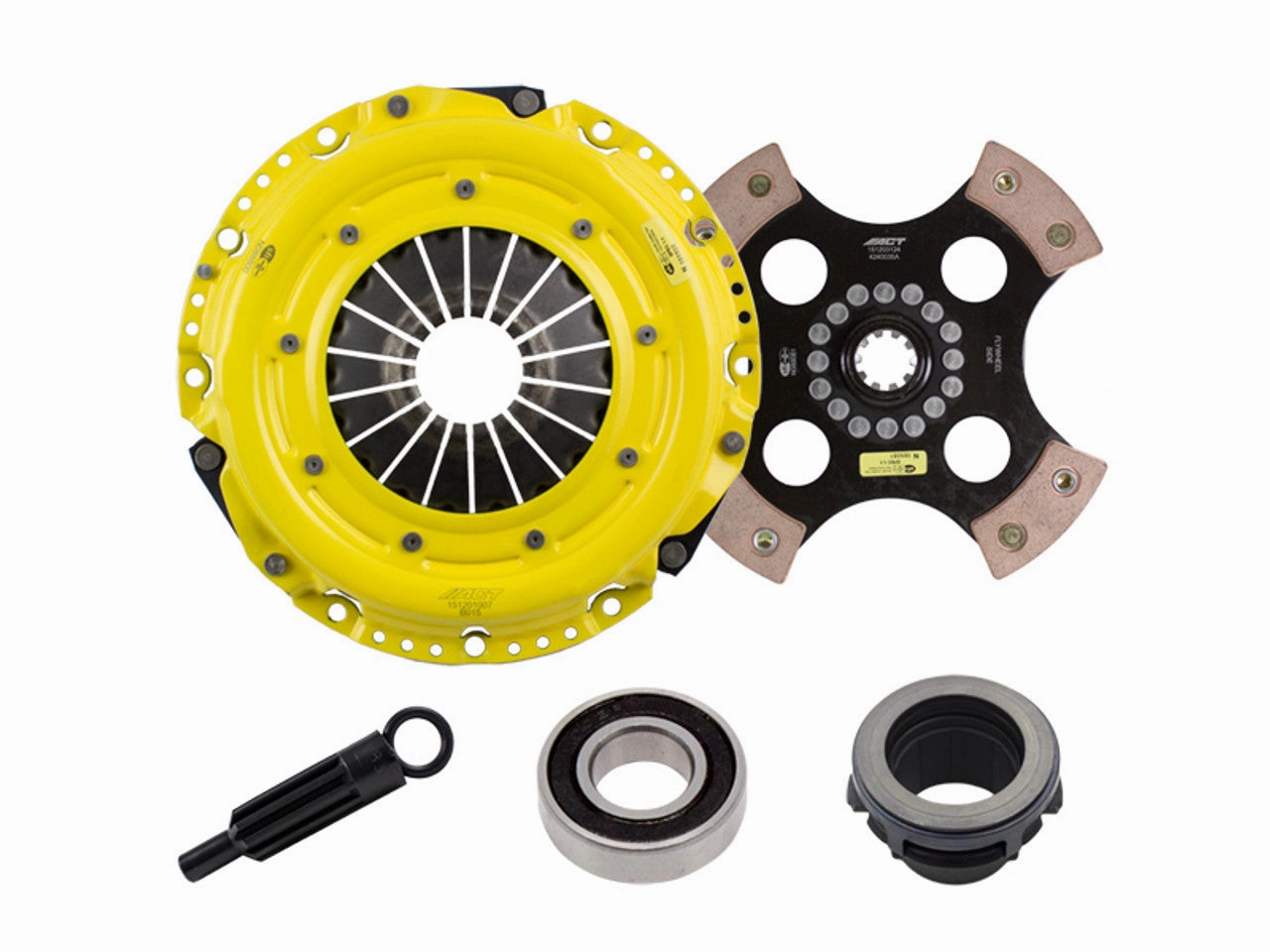

Product Description

ACT's Xtreme Duty/Race Rigid kit boasts an Xtreme pressure plate tailored for demanding drivers. Utilizing an exclusive diaphragm design, it enhances clamp load, diminishes deflection, and extends clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process for superior performance. Precision cover stampings ensure rigidity and consistency. The 4-pad rigid race discs, crafted with top-notch ceramic friction materials, feature a chrome-moly hub treated for durability. Its lightweight, sturdy construction enables swift shifts and dependable operation. While engagement may feel harsher, the 4-pad rigid race disc facilitates faster shifting, particularly ideal for smaller engines with compact disc sizes.

ACT Xtreme Duty /Race Rigid Clutch Kit Features:

• Feel: Experience a pedal with moderate to heavy effort, delivering aggressive engagement and increased gear rattle.

• Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design, although the rigid design may lead to increased spline wear over time.

• Quality: Meticulously engineered, precisely assembled, and accurately balanced, this product utilizes select ceramic friction materials for high heat tolerance and maximum performance.

• Recommended Use: This product is specifically recommended for race use only, ensuring optimal performance in high-performance driving scenarios.

• ACT Difference: Each unit undergoes 100% clamp load testing and dynamic computer balancing, guaranteeing smooth operation even at high RPMs.
